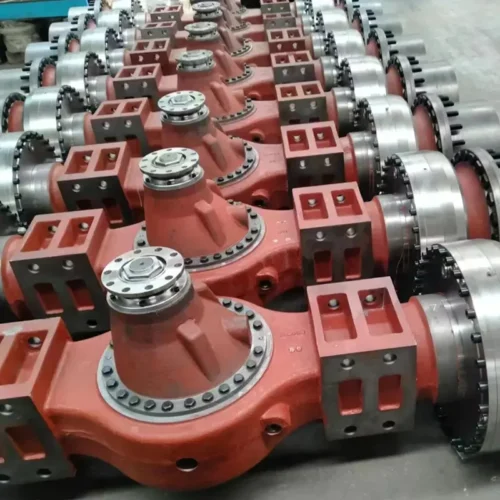

PRST 14D Drive Axle
The PRST 14D Drive Axle is a top-tier alternative to Dana 35r68 (14D) axles, designed for those who demand exceptional performance, reliability, and safety in their drivetrain systems. Built with over 20 years of expertise in transmission design and manufacturing, PRST’s axle solutions are engineered to handle the toughest conditions while ensuring maximum productivity and minimal maintenance.
Crafted with cutting-edge technology, the PRST 14D axle features POSI-STOP fully enclosed wet multi-disc braking, NO-SPIN anti-slip differential, and a highly efficient cooling system. Whether you’re upgrading an existing vehicle or building a custom application, the PRST 14D axle delivers the performance and durability needed to conquer any terrain.
Key Features:
- POSI-STOP Enclosed Wet Multi-Disc Braking: Ensures a long brake service life with spring-actuated braking and hydraulic release.
- Automatic Brake Engagement: Automatically engages brakes upon engine shutdown or parking, providing enhanced safety and reliability.
- Advanced Cooling Circuit: Dedicated pressure oil cooling circuit minimizes friction plate wear, ideal for frequent braking scenarios.
- NO-SPIN Anti-Slip Differential: Automatically transfers torque to non-slipping wheels without manual intervention, improving traction and productivity.
- Dana 14D Compatibility: Fully interchangeable with Dana 14D axle parts, except for the axle housing and main reduction components.
Technical Specifications:
– Braking Torque: 20,000 N.m
– Brake-Releasing Pressure: 10.4 Mpa
– Maximum Cooling Pressure: 0.07 Mpa
– Main Reducer Speed Ratio: 5.286:1
– Wheel Reducer Speed Ratio: 4.941:1
– Total Speed Ratio: 26.118:1
– Maximum Static Load: 178,000 N
– Maximum Input Torque: 2,668 Nm
Basic Information:
– Model Number: PRST14D
– Type: Rear Axles
– Brand: PRST/OEM
– Available Ratios: Different Ratios Available
– Load Capacity: Higher Load Capacity
– Output Torque: Higher Output Torque
– Design: Customized Design Available
– Ground Tooth: Notchless Ground Tooth Root

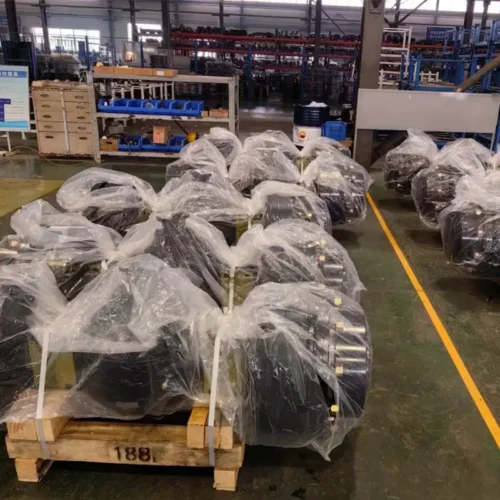

– Transport Package: Wooden Boxes
– Trademark: PRST
– Origin: China
– HS Code: 8483402090
– Production Capacity: 1000 Units/Month
